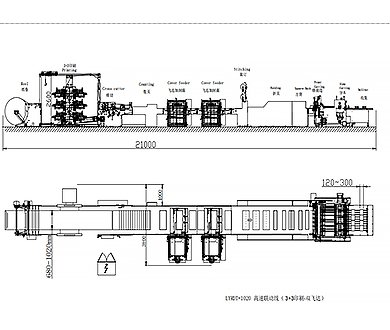

LYRDT-1020S Intelligent Flexographic & Wire Stitching Production Line

Composed of paper holder, 3+3 color printing, slitting, servo page counting, collating unit with 2 feeders and 1 manual station, stitching, folding, square back forming, cross cutting & edge trimming, longitudinal cutting, collecting system, control system and transmission mechanism. The printing section adopts Gates timing pulley transmission imported from the US.

Specifications

Technical Parameters

Power: 5KW

Web width: 680-1020mm

Max slitting speed: 440 sheets per minute

Max stitching speed: 55 times per minute

Double-sided three-color printing: 3+3

Applicable paper weight: 45-120g/m²

Slitting accuracy: ±0.5mm

Printing & slitting length: 300-720mm

Front-back register accuracy: ≤0.25mm

Max roll paper diameter: 1300mm

Folding size: 250-610mm

Max mechanical speed: 300m/min (60-80g pure wood pulp paper)
